Generated April 21, 2026 at 04:34 AM ← District Overview 🗺 Map
🕒 Last scan: 2026-04-08 09:05 UTC (308h ago ⚠ STALE)Status: Partial✓ 1 reachable⚠ 2 unreachable
8
Total Devices
1
Cisco
2
Extreme
5
Meraki Topo
3
Outdoor
7
Fiber Links
5
IDFs
10.98.0.1
Core IP
10.98.0.0/21
Management
10.250.0.50/30
WAN Link
3
Endpoints
18
Meraki Cloud
14
Meraki Online
7
Unreachable
2
HIGH Findings
3
Meraki Alerting
🗺 Topology
🔌 Port Map7/12
⚙ Switch Config
🔩 Hardware & Licenses
☁ Meraki Inventory18
🔒 Security2
💻 Endpoints3
📋 VLANs
📝 Change Log
⚠ Scan Errors2
🗄 Rack Diagrams
📐 Floor Plans1
CORE Main Distribution MDF Main Building IDF-1 Main Building IDF-2 Main Building IDF-3 Main Building OUTDOOR Main Building DISTRICT WAN RING 40G 40G 10G 1G 1G 1G 1G ⬡ TRANS-CORE C9500-24Y4C 10.98.0.1 C9500. WAN 10.250.0.50 ◈ TRANS-MDF-1 MS355-48X 10.98.0.10 [Q10] Meraki MS355-48X ◈ TRANS-MDF-2 MS355-48X 10.98.0.11 [Q10] Meraki MS355-48X ◈ TRANS-MDF-3 MS355-48X 10.98.0.12 [Q10] Meraki MS355-48X ◆ TRANS-IDF1 X460G2-48p-G4 10.98.0.20 X460G2-48p-G4. Uplink ◈ TRANS-IDF2 ◆ TRANS-IDF3 ◈ TRANS-JA
Legend
⬡Core (C9500)
▣Cisco C9300
◆Extreme X-Series
◈Meraki MS
◆Outdoor / Access
40G+ Ring / 10G
1G Fiber
Sub-1G / Copper
CDP/LLDP Undocumented Link
Health Ring + Node Badges
Reachable / Healthy
Warning (CPU/Mem/Temp)
Unreachable / Critical
Not Yet Scanned
RoleLabelModelIP AddressDescriptionSerial(s)VendorStatusPorts
MDF
CORETRANS-COREC9500-24Y4C10.98.0.1C9500. WAN 10.250.0.50/30 (Hu1/0/25—Cisco✗ Down
DISTRIBUTIONTRANS-MDF-1MS355-48X10.98.0.10[Q10] Meraki MS355-48X. MDF Unit 1.Q2CY-MGSW-Z2S6Meraki✗ Down
DISTRIBUTIONTRANS-MDF-2MS355-48X10.98.0.11[Q10] Meraki MS355-48X. MDF Unit 2.Q2CY-QG9P-D96PMeraki✗ Down
DISTRIBUTIONTRANS-MDF-3MS355-48X10.98.0.12[Q10] Meraki MS355-48X. MDF Unit 3.Q2CY-96RJ-BD8EMeraki✗ Down
IDF-1
DISTRIBUTIONTRANS-IDF1X460G2-48p-G410.98.0.20X460G2-48p-G4. Uplink from MDF-2 po1503N-42548Extreme✗ Down
IDF-2
OUTDOORTRANS-IDF2MS120-8FP10.98.0.30[Q10] Meraki MS120. Uplink from MDFQ4DB-GTMH-KMCQMeraki✗ Down
IDF-3
OUTDOORTRANS-IDF3X435-8P-4S10.98.0.40X435-8P-4S. Uplink from MDF-1 port 2024G-00609Extreme✓7/12
OUTDOOR
OUTDOORTRANS-JAMS120-8FP10.98.0.50[Q10] Meraki MS120. JA Discovery CeQ4DB-3TW8-FDNBMeraki✗ Down
Up (access)
Up (trunk)
Up (SFP/uplink)
Oper-down
Admin-disabled
OUTDOORTRANS-IDF3ExtremeX435-8P-4S
10.98.0.40 · 12 ports scanned
✓ 7 up
⬇ 5 oper-down
⊘ 0 disabled
Port1
Port2
Port3
Port4
Port5
Port6
Port7
Port8
Port9
Port10
Port11
Port12

No switch configuration data available. Run a scan to populate.

No hardware or license data available. Run a scan to populate.

1
Networks
18
Meraki Devices
14
Online
3
Alerting
5
Switches
13
APs
Transportation
sensor|switch|wireless · 4395 River Watch Parkway, Evans, Georgia
5 Switch13 AP14 Online3 Alerting1 Offline
StatusDeviceModelTypeIPFirmwareLast ReportedContextDashboard
AlertingOld trans back bay
Q3AC-G6XA-VWNU		MR46AP10.75.10.22wireless-32-1-62026-04-02 13:46Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
AlertingOld trans front bay
Q3AC-Z2UY-R2HU		MR46AP10.75.10.142wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans AP 301
Q3AC-UQ8H-JF7T		MR46AP10.98.10.7wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans AP 322
Q3AC-J35E-FV6E		MR46AP10.98.10.5wireless-32-1-62026-04-02 13:46Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans AP outdoor
Q3AE-AMNB-YRMF		MR86AP10.98.10.40wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans-AP-306
Q3AC-4KWY-JBVA		MR46AP10.98.10.6wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
AlertingTrans-AP-307
Q3AC-7UCK-4DFF		MR46AP10.98.10.4wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans-AP-315
Q3AC-V49Y-DEJ5		MR46AP10.98.10.8wireless-32-1-62026-04-02 13:46Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans-AP-317
Q3AC-FKPT-QUZJ		MR46AP10.98.10.3wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans-AP-319
Q3AC-AKED-GQJL		MR46AP10.98.10.2wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans-AP-329
Q3AC-NMTN-6F2M		MR46AP10.98.10.1wireless-32-1-62026-04-02 13:46Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineTrans-AP-Bay 1
Q3AC-EA4E-7K6G		MR46AP10.98.10.26wireless-32-1-62026-04-02 13:47Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OfflineTrans-AP-Bay 2
Q3AC-6P4G-AHJC		MR46AP—Not running configured version2024-06-10 20:20Tags: 10
Running software version=MR 32.1.6; device mode=managed 		Open
OnlineJA - Discovery Center
Q4DB-3TW8-FDNB		MS120-8FPSwitch10.98.0.50switch-18-1-32026-04-02 13:47Running software version=MS 18.1.3.1; device mode=managed Open
OnlineTransportation IDF 2
Q4DB-GTMH-KMCQ		MS120-8FPSwitch10.98.0.30switch-18-1-32026-04-02 13:47Running software version=MS 18.1.3.1; device mode=managed Open
OnlineTransportation MDF 1
Q2CY-MGSW-Z2S6		MS355-48XSwitch10.98.0.10switch-18-1-32026-04-02 13:47Running software version=MS 18.1.3.1; device mode=managed Open
OnlineTransportation MDF 2
Q2CY-QG9P-D96P		MS355-48XSwitch10.98.0.11switch-18-1-32026-04-02 13:47Tags: recently-added
Running software version=MS 18.1.3.1; device mode=managed 		Open
OnlineTransportation MDF 3
Q2CY-96RJ-BD8E		MS355-48XSwitch10.98.0.12switch-18-1-32026-04-02 13:46Tags: recently-added
Running software version=MS 18.1.3.1; device mode=managed 		Open
2
HIGH
0
MEDIUM
3
INFO
🛠 Remediation Guidance
HIGHTelnet2 finding(s) on 2 host(s)▼
INFOSSH2 finding(s) on 2 host(s)▼
INFOHTTPS1 finding(s) on 1 host(s)▼
SeverityIP AddressPortServiceWhy This Is a RiskBannerScan Time
HIGH10.98.0.123TelnetTransmits all data including credentials in plain text. Anyone on the network can capture …—2026-04-08 09:07
HIGH10.98.0.2023TelnetTransmits all data including credentials in plain text. Anyone on the network can capture …—2026-04-08 09:07
INFO10.98.0.122SSHSSH management port exposed. While SSH is encrypted, exposed SSH surfaces are subject to b…SSH-2.0-Cisco-1.252026-04-08 09:07
INFO10.98.0.1443HTTPSExposed management service detected on this host. Unnecessary open ports increase the atta…—2026-04-08 09:07
INFO10.98.0.4022SSHSSH management port exposed. While SSH is encrypted, exposed SSH surfaces are subject to b…SSH-2.0-OpenSSH_8.12026-04-08 09:07
3
NetworkDevice
IP AddressHostname / NetBIOSMACOSTypeOpen PortsBannerUp
10.98.0.1——NetworkDeviceSwitch22, 23, 443openresty✓
10.98.0.20——NetworkDeviceSwitch23, 80{{pageTitle}}✓
10.98.0.40——NetworkDeviceSwitch22, 80:: | {{pageTitle}}✓

No VLAN data available. Requires scan_PortStatus data.

No device changes recorded in the last 30 days.

SeverityDevice / IPCategoryMessageTime (UTC)
ERRORTRANS-CORECONNECTIVITYSSH connection could not be established.2026-04-08 09:06
ERRORTRANS-IDF1CONNECTIVITYSSH connection could not be established.2026-04-08 09:06
MDFRack Diagram Available
Core C9500 + 3x Meraki MS355-48X MDF. [FLAG-TRANS-ALL][Q10]
MDF — 4220 Rack Frame Main Building U1 Patch Panel 1 (48p) U2 TRANS-MDF-1 10.98.0.10 MS355-48X U4 TRANS-MDF-2 10.98.0.11 MS355-48X U6 TRANS-MDF-3 10.98.0.12 MS355-48X U8 TRANS-CORE 10.98.0.1 C9500-24Y4C U10 U11
Meraki10.98.0.10TRANS-MDF-1Q2CY-MGSW-Z2S6
Meraki10.98.0.11TRANS-MDF-2Q2CY-QG9P-D96P
Meraki10.98.0.12TRANS-MDF-3Q2CY-96RJ-BD8E
Cisco10.98.0.1TRANS-CORE—
IDF-1Rack Diagram Available
1x X460G2-48p-G4.
IDF-1 — 4220 Rack Frame Main Building U1 Patch Panel 1 (48p) U2 TRANS-IDF1 10.98.0.20 X460G2-48p-G4 U4 U5
Extreme10.98.0.20TRANS-IDF11503N-42548
IDF-2Rack Diagram Available
1x Meraki MS120-8FP. [Q10]
IDF-2 — 4220 Rack Frame Main Building U1 Patch Panel 1 (48p) U2 TRANS-IDF2 10.98.0.30 MS120-8FP U4 U5
Meraki10.98.0.30TRANS-IDF2Q4DB-GTMH-KMCQ
IDF-3
1x X435-8P-4S.
IDF-3 — Equipment Rack Main Building U1 TRANS-IDF3 10.98.0.40 X435-8P-4S U3 U4
Extreme10.98.0.40TRANS-IDF32024G-00609
OUTDOOR
JA Discovery Center Meraki MS120. [Q10]
OUTDOOR — Equipment Rack Main Building U1 TRANS-JA 10.98.0.50 MS120-8FP U3 U4
Meraki10.98.0.50TRANS-JAQ4DB-3TW8-FDNB

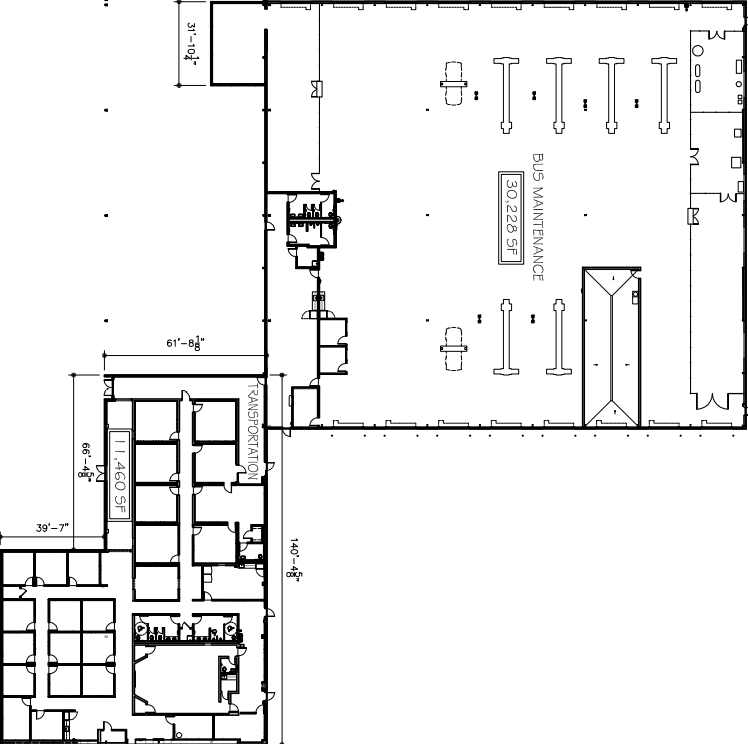

Transportation
Floor Plan
Transportation
transportation print.png
Open full viewer →
